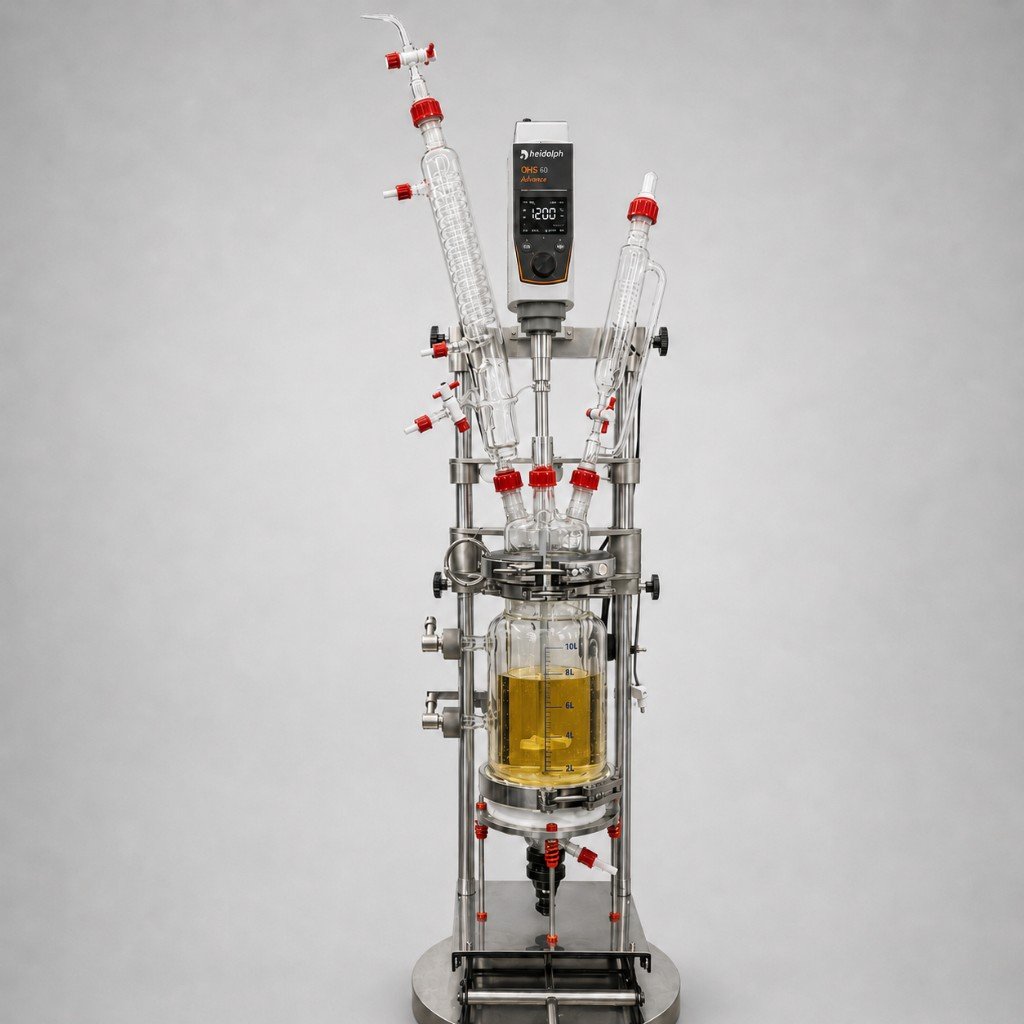

Benchtop Filter Reactors
ANTICO FilterReact™ combines reaction and filtration into a single compact unit for laboratory applications. The working principle allows reaction followed by in-situ filtration without transferring material. The system includes a reactor vessel, filter plate, vacuum connection, and agitation system. It is used for crystallization, catalyst recovery, and solid-liquid separation. This integrated approach minimizes contamination and product loss. The unit supports vacuum-assisted filtration for efficient separation.
It improves workflow efficiency and reduces handling time. The system is suitable for small batch processing. It is widely used in pharmaceutical and fine chemical laboratories. ANTICO FilterReact™ streamlines reaction and filtration processes.
- Capacity 1 L – 20 L
- MOC (Vessel) Borosilicate Glass 3.3 / SS316L (optional)
- Design Type Reactor with Integrated Filtration
- Design Pressure Vacuum (-1 barg) to +1 barg
- Design Temperature -20°C to +150°C
- Jacket Type Double Jacket (Heating/Cooling)
Key Features
-
Integrated filtration base
Integrated filtration base
-
Vacuum assisted filtration
Vacuum assisted filtration
-
Chemical resistant construction
Chemical resistant construction
-
Quick discharge of solids
Quick discharge of solids
-
Reduced product handling
Reduced product handling
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Pharmaceutical intermediates
- Fine chemicals
- Dyes and pigments
- Catalyst manufacturing
- Research institutes
- Academic & government research
- Oil & gas processing
- Water treatment
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 1 L – 20 L |
| MOC (Vessel) | Borosilicate Glass 3.3 / SS316L (optional) |
| Design Type | Reactor with Integrated Filtration |
| Design Pressure | Vacuum (-1 barg) to +1 barg |
| Design Temperature | -20°C to +150°C |
| Jacket Type | Double Jacket (Heating/Cooling) |
| Agitator Type | Anchor / Paddle |
| Speed Range | 50 – 400 RPM (VFD controlled) |
| Filtration System | Sintered Plate / Filter Cloth Support |
| Filter Size | 0.2 – 50 microns (interchangeable) |
| Discharge Mechanism | Bottom Valve / Filter Plate Lift |
| Nozzles | Charge, Vent, Vacuum, Sampling |
| Instrumentation | RTD/PT100, Vacuum Gauge |
| Automation | Optional PID / PLC Control |
| Safety Features | Vacuum Breaker, PRV (optional) |
Related Products
FAQ
What capacity range is available for Benchtop Filter Reactor?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
