Nutsche Filters
ANTICO NutschePro™ is designed for efficient solid-liquid separation in batch processing applications. The working principle involves filtration under vacuum or pressure through a filter medium. The system includes a vessel, filter plate, agitation (optional), and discharge mechanism. It is used for filtration, washing, and drying of solids in a single unit. The enclosed design ensures safe handling of hazardous materials. It supports cake washing and uniform drying. The system is available in glass-lined or stainless steel construction.
It is widely used in pharmaceutical, chemical, and agrochemical industries. It ensures high product purity and recovery. ANTICO NutschePro™ provides reliable and efficient filtration performance.
- Type Vacuum / Pressure Nutsche Filter
- Capacity 0.5 L – 5000+ L
- MOC (Wetted Parts) Borosilicate Glass 3.3 / SS316L / Glass-lined…
- Design Type Agitated / Non-agitated
- Operation Mode Batch
- Design Pressure Vacuum (-1 barg) to +4 barg (Glass) / +6 barg…
Key Features
-
Closed filtration system
Closed filtration system
-
Efficient cake washing
Efficient cake washing
-
Uniform filtration
Uniform filtration
-
Safe operation
Safe operation
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.

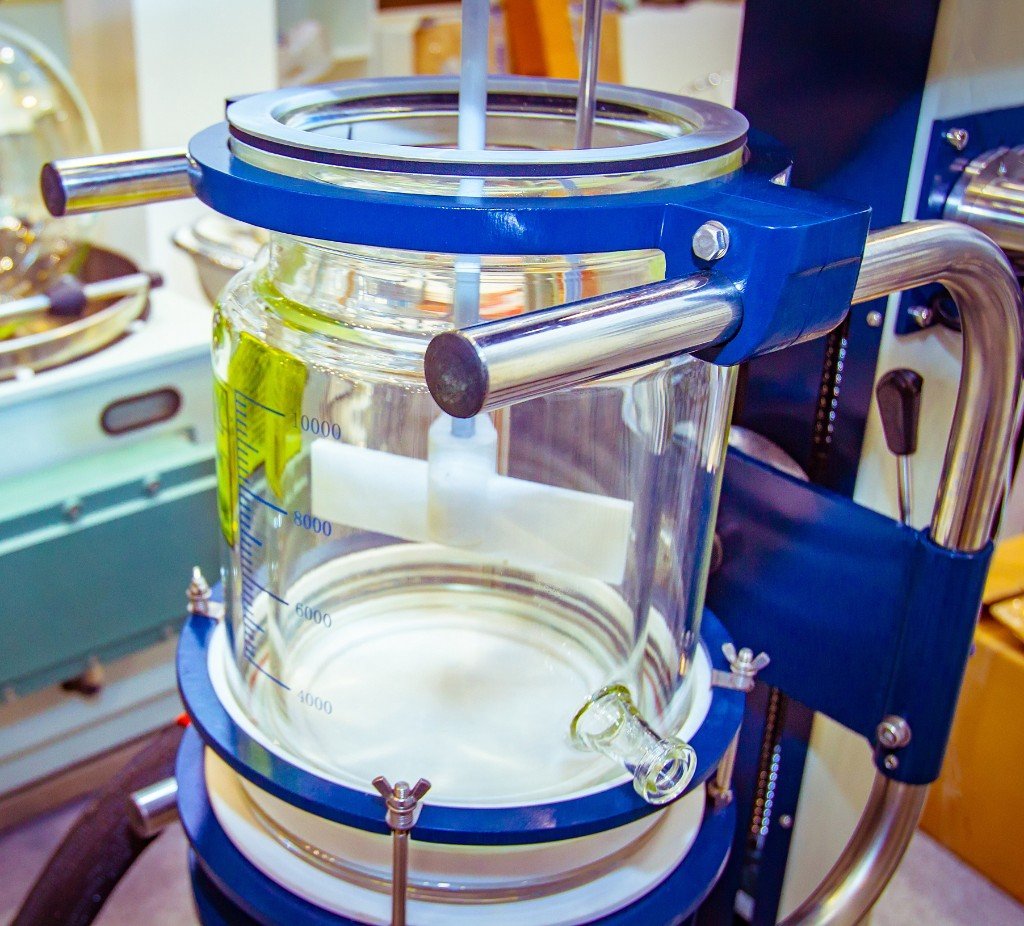

System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Pharmaceuticals
- Fine chemicals
- Agrochemicals
- Dyes and pigments
- Food & beverage processing
- Academic & government research
- Oil & gas processing
- Water treatment
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Vacuum / Pressure Nutsche Filter |
| Capacity | 0.5 L – 5000+ L |
| MOC (Wetted Parts) | Borosilicate Glass 3.3 / SS316L / Glass-lined Steel / Hastelloy |
| Design Type | Agitated / Non-agitated |
| Operation Mode | Batch |
| Design Pressure | Vacuum (-1 barg) to +4 barg (Glass) / +6 barg (Metal) |
| Operating Temperature | -20°C to 150°C (Glass) / up to 200°C (Metal) |
| Filtration System | Sintered Plate / Perforated Plate + Filter Cloth |
| Filter Area | 0.05 – 10 m² (customizable) |
| Agitation System | Paddle / Agitator (for ANF) |
| Drying Capability | Optional (Vacuum Drying) |
| Discharge System | Bottom Valve / Side Discharge |
| Sealing | PTFE / Mechanical Seal Vacuum / Pressure System |
| External Vacuum Pump / Nitrogen Pressure | Instrumentation |
| Pressure Gauge, Temp Sensor | Automation |
| Manual / PLC (Optional) | Key Advantage |
| Corrosion Resistance + Visual Monitoring (Glass Option) | Applications |
Related Products
FAQ
What capacity range is available for Nutsche Filter?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
