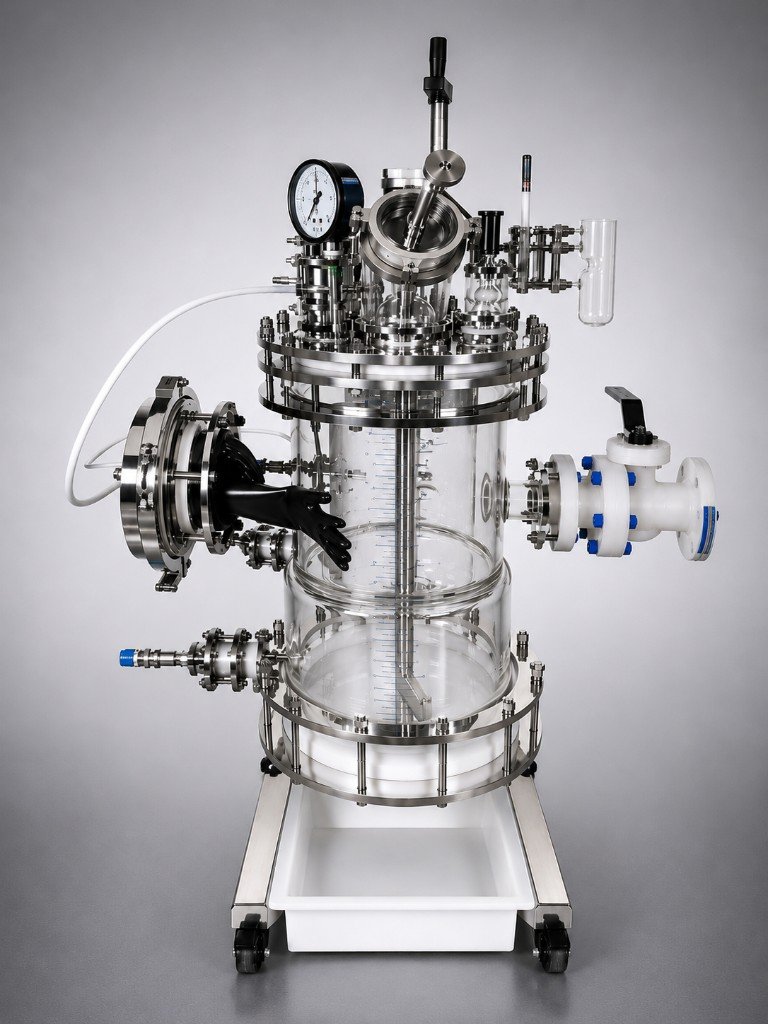

High-Containment Filters
ANTICO ContainX™ is designed for filtration of highly potent and hazardous compounds under strict containment conditions. The working principle involves sealed filtration systems that prevent exposure to operators and the environment. The system includes enclosed filtration units, containment barriers, and specialized discharge systems. It is used for high-potency APIs and toxic materials. The design ensures compliance with stringent safety and regulatory standards. It minimizes cross-contamination and exposure risks. The system supports safe handling, filtration, and discharge operations.
It is widely used in pharmaceutical and high-containment manufacturing facilities. It enhances operator safety and process integrity. ANTICO ContainX™ is essential for advanced containment applications.
- Type High Containment Nutsche / Filter Dryer
- Capacity 5 L – 2000+ L
- MOC (Wetted Parts) SS316L / Glass-lined Steel / Hastelloy
- Containment Level OEB 4 / OEB 5 (≤1 µg/m³)
- Design Type Fully Enclosed, Dust-tight System
- Operation Mode Batch
Key Features
-
Dust-free operation
Dust-free operation
-
Operator safety
Operator safety
-
Closed system design
Closed system design
-
Compliance with containment standards
Compliance with containment standards
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Pharmaceutical high potency API
- Biotechnology
- Fine chemicals
- Hazardous material processing
- Food & beverage processing
- Academic & government research
- Oil & gas processing
- Water treatment
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | High Containment Nutsche / Filter Dryer |
| Capacity | 5 L – 2000+ L |
| MOC (Wetted Parts) | SS316L / Glass-lined Steel / Hastelloy |
| Containment Level | OEB 4 / OEB 5 (≤1 µg/m³) |
| Design Type | Fully Enclosed, Dust-tight System |
| Operation Mode | Batch |
| Design Pressure | Vacuum (-1 barg) to +6 barg |
| Operating Temperature | Ambient to 200°C |
| Filtration System | Perforated Plate with High Integrity Filter Media |
| Agitation System | Paddle / Agitated System (optional) |
| Drying Capability | Optional (Vacuum Drying) |
| Discharge System | Split Butterfly Valve (SBV) / Contained Discharge |
| Charging System | RTP / Continuous Liner / Charge Isolator |
| Sealing | Double Mechanical Seal with Barrier Fluid |
| Containment Features | Glove Box / Isolator Integration |
| Cleaning System | CIP / WIP (Wash-in-Place) |
| Instrumentation | Temp, Pressure, Leak Detection |
| Automation | PLC / SCADA with Interlocks |
| Key Advantage | Safe Handling of Highly Potent / Toxic Compounds |
| Applications | HPAPI, Oncology Drugs, Toxic Fine Chemicals |
Related Products
FAQ
What capacity range is available for High Containment Filter?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
