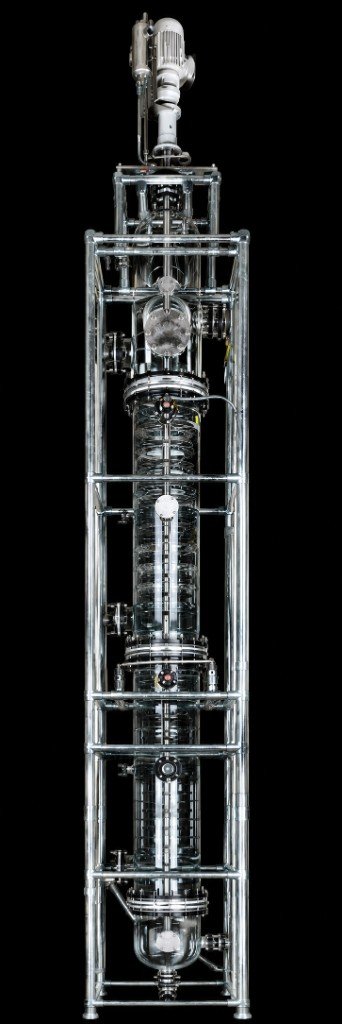

Packed Tray Columns
ANTICO ExtractCol™ is designed for continuous liquid-liquid extraction using packed or tray columns.
The working principle involves counter-current contact between two immiscible phases to enhance mass transfer. The system includes a vertical column, packing or trays, distributors, and collectors. It is used for large-scale extraction and separation processes. The design ensures high interfacial area for efficient mass transfer. It supports continuous operation with steady performance. The system allows optimization of flow rates and phase ratios. It is suitable for high-throughput industrial applications. It is widely used in petrochemical, chemical, and solvent extraction industries. ANTICO ExtractCol™ delivers efficient and continuous extraction performance.
- Type Liquid–Liquid Extraction Column
- Capacity 1 – 10,000+ L/hr
- MOC (Wetted Parts) Borosilicate Glass 3.3 / SS grades / PP / PVDF
- Column Type Packed Column / Tray Column
- Packing / Internals Structured Packing / Raschig Rings / Sieve Trays
- Operation Mode Batch/ Semi batch/Continuous
Key Features
-
High efficiency separation
High efficiency separation
-
Flexible design
Flexible design
-
Suitable for scale up operations
Suitable for scale up operations
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Pharmaceuticals
- Bulk & fine chemicals
- Food & beverage
- Agrochemicals
- Petrochemicals
- Chemical processing
- Gas absorption
- Solvent recovery
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Liquid–Liquid Extraction Column |
| Capacity | 1 – 10,000+ L/hr |
| MOC (Wetted Parts) | Borosilicate Glass 3.3 / SS grades / PP / PVDF |
| Column Type | Packed Column / Tray Column |
| Packing / Internals | Structured Packing / Raschig Rings / Sieve Trays |
| Operation Mode | Batch/ Semi batch/Continuous |
| Flow Configuration | Counter-current (preferred) / Co-current |
| No. of Stages (Equivalent) | 1– 20+ (depending on height & design) |
| Phase Contacting | Dispersed Phase via Distributor |
| Separation Mechanism | Gravity Settling along Column Height |
| Temperature Range | Ambient to 200°C |
| Pressure Range | Atmospheric to +5 barg |
| Residence Time | As per the design |
| Interface Control | Level Controller (Top/Bottom) |
| Instrumentation | Flow, Level, Temp |
| Automation | PLC (Optional) |
| Key Advantage | Continuous Operation with Low Footprint |
| Applications | Solvent Extraction, Metal Recovery, API Purification |
Related Products
FAQ
What capacity range is available for Packed / Tray Columns?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
