Forced Circulation Evaporators

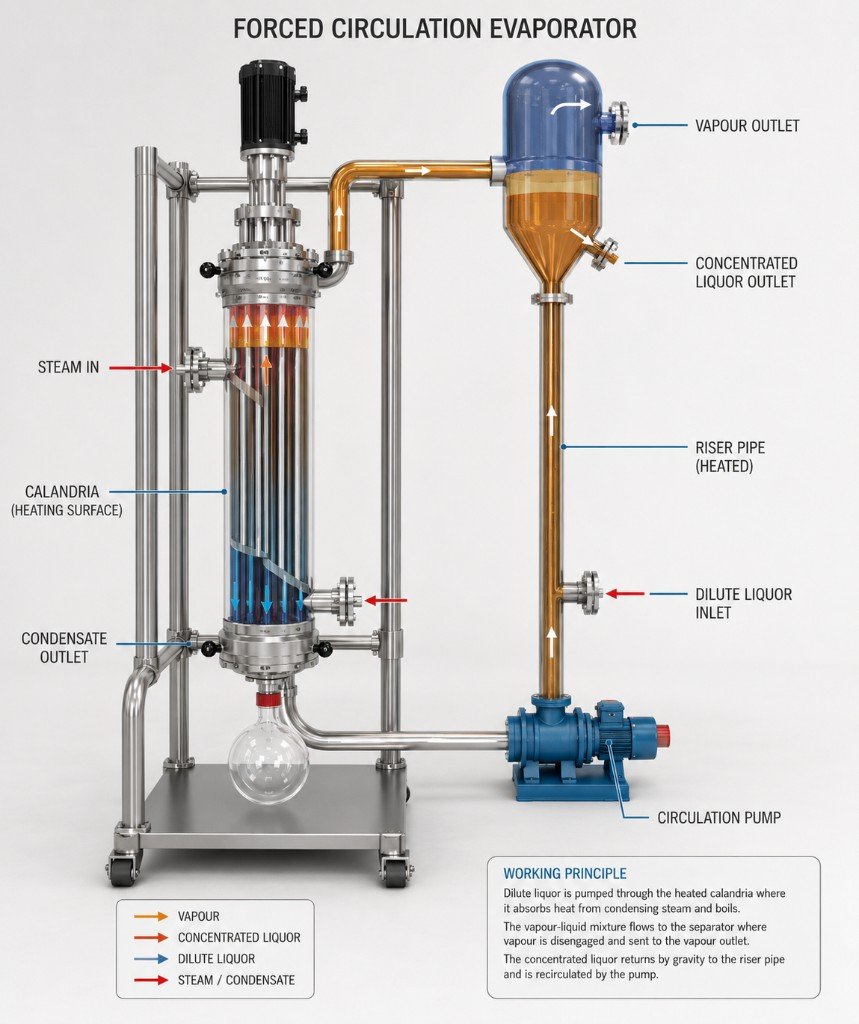

ANTICO CircuEvap™ is designed for evaporation of liquids prone to fouling or crystallization. The working principle involves circulating liquid at high velocity through a heat exchanger to prevent scaling and fouling. The system includes a circulation pump, heat exchanger, vapor separator, and condenser. It is used for concentrating solutions with suspended solids or high viscosity. Forced circulation ensures uniform heat transfer and prevents deposition. The system supports operation under vacuum or atmospheric conditions.
It is suitable for continuous industrial processes. It provides stable operation even with difficult fluids. It is widely used in chemical and process industries. ANTICO CircuEvap™ ensures reliable performance in demanding conditions.
- Type Forced Circulation Evaporation System
- Capacity 100 – 20,000+ L/hr
- MOC (Wetted Parts) SS316L / Duplex SS / Hastelloy / Glass-lined …
- Operation Mode Continuous
- Design Pressure Vacuum to +5 barg
- Operating Temperature Ambient to 200°C
Key Features
-
High circulation velocity
High circulation velocity
-
Handles slurry systems
Handles slurry systems
-
Prevents fouling
Prevents fouling
-
Stable operation under high solids
Stable operation under high solids
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Fertilizers
- Salt processing
- Chemical manufacturing
- Waste treatment
- Food & beverage processing
- Academic & government research
- Oil & gas processing
- Water treatment
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Forced Circulation Evaporation System |
| Capacity | 100 – 20,000+ L/hr |
| MOC (Wetted Parts) | SS316L / Duplex SS / Hastelloy / Glass-lined Steel |
| Operation Mode | Continuous |
| Design Pressure | Vacuum to +5 barg |
| Operating Temperature | Ambient to 200°C |
| Evaporation Type | Recirculating Liquid with External Heat Exchanger |
| Circulation System | High Flow Pump (Centrifugal) |
| Heat Exchanger Type | Shell & Tube / Plate Heat Exchanger |
| Heating Medium | Steam / Thermic Fluid |
| Vapor Separation | Flash Separator / Vapor Body |
| Cooling System | Surface Condenser |
| Handling Capability | High Viscosity / Fouling / Crystallizing Liquids Vacuum System |
| Liquid Ring Pump / Steam Jet Ejector | Instrumentation |
| Temp, Pressure, Flow, Density (optional) | Automation |
| PLC / SCADA (Optional) | Key Advantage |
| Handles Scaling/Fouling Systems with Stable Operation | Applications |
Related Products
FAQ
What capacity range is available for Forced Circulation Evaporator?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
