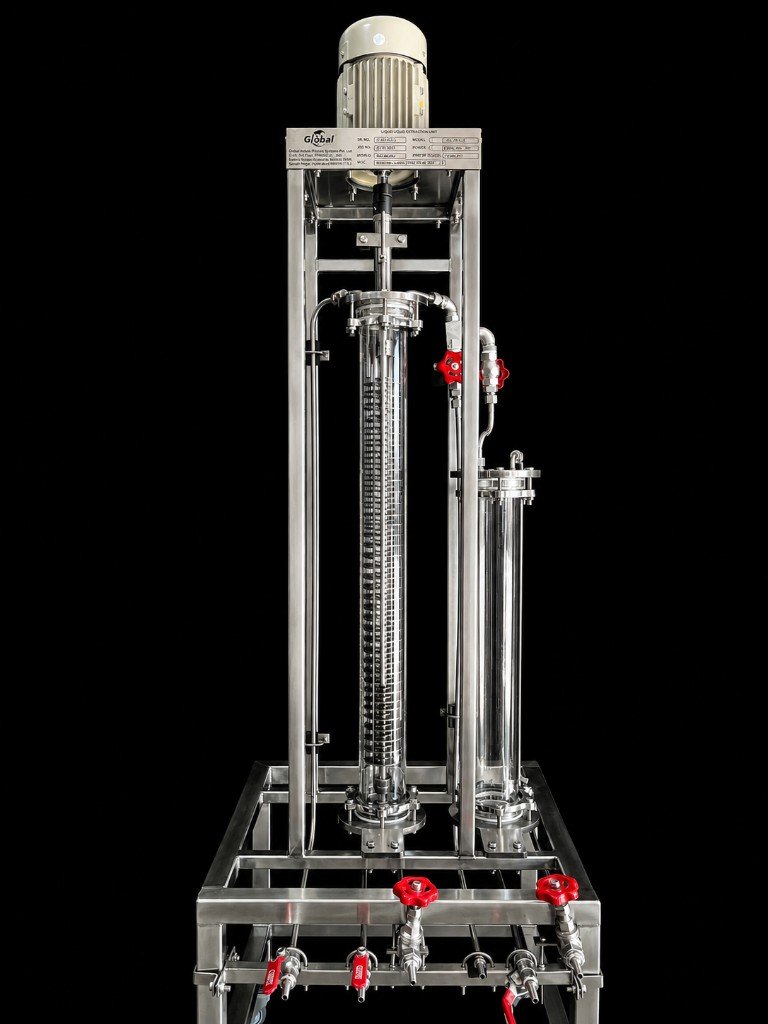

Rotating Disc Contactor RDC
ANTICO RotDisc™ is designed for enhanced liquid-liquid extraction using mechanical agitation. The working principle involves rotating discs that create turbulence and improve mass transfer between phases. The system includes a vertical column, rotating shaft, discs, and housing. It is used for high-efficiency extraction processes. The design provides high stage efficiency and compact size. It allows precise control over mixing intensity. The system supports continuous operation.
It is suitable for difficult separations requiring high mass transfer rates. It is widely used in nuclear, chemical, and pharmaceutical industries. ANTICO RotDisc™ ensures superior extraction performance.
- Type Mechanically Agitated Liquid–Liquid Extractio…
- Capacity 1– 5000+ L/hr
- MOC (Wetted Parts) SS grades / Borosilicate Glass 3.3 (lab) / PP…
- Operation Mode Continuous
- Flow Configuration Counter-current
- Column Internals Rotating Discs with Stator Rings
Key Features
-
High mass transfer rate
High mass transfer rate
-
Compact design
Compact design
-
Suitable for continuous operation
Suitable for continuous operation
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
-
Engineered for Reliable Operation
Built for demanding chemical and pharmaceutical process environments.
System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Hydrometallurgy
- Pharmaceuticals
- Solvent extraction
- Fine chemicals
- Hazardous material processing
- Academic & government research
- Oil & gas processing
- Water treatment
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Mechanically Agitated Liquid–Liquid Extraction Column |
| Capacity | 1– 5000+ L/hr |
| MOC (Wetted Parts) | SS grades / Borosilicate Glass 3.3 (lab) / PP / PVDF |
| Operation Mode | Continuous |
| Flow Configuration | Counter-current |
| Column Internals | Rotating Discs with Stator Rings |
| Stage Efficiency | High (5 – 20+ equivalent stages) |
| Disc Speed | 0 – 500 RPM (VFD controlled) |
| Phase Contacting | Intense Mixing via Rotating Discs |
| Separation Mechanism | Settling between stator stages |
| Temperature Range | Ambient to 200°C |
| Pressure Range | Atmospheric to +5 barg |
| Residence Time | Low to Moderate |
| Interface Control | Automatic Level Control |
| Instrumentation | Flow, Level, Temp, RPM |
| Automation | PLC / SCADA (Optional) |
| Key Advantage | High Efficiency with Compact Column Height |
| Applications | Solvent Extraction, Hydrometallurgy, API Purification |
Related Products
FAQ
What capacity range is available for Rotating Disc Contactor (RDC)?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
