Pressure Reactors

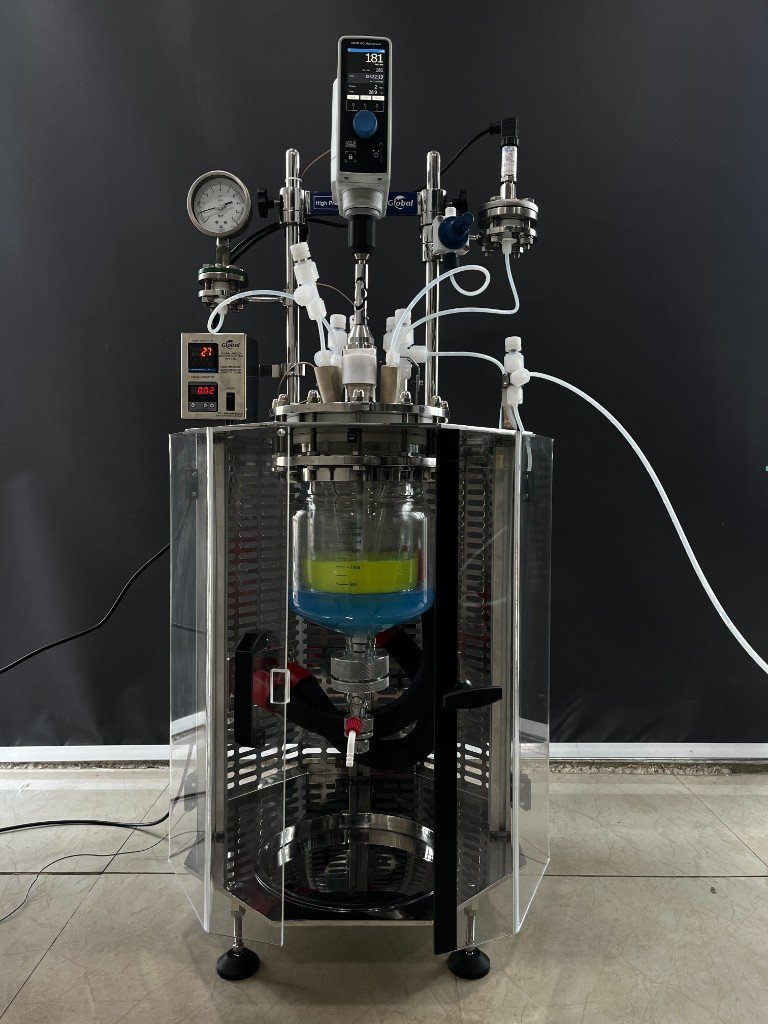

ANTICO Pressura™ is engineered for chemical reactions carried out under elevated pressure and controlled atmospheres. The working principle involves sealed operation where gases and liquids react under pressure with controlled agitation and temperature. The system includes a high-pressure vessel, sealing system, agitator, pressure gauges, safety valves, and gas dosing lines. It is commonly used for hydrogenation, oxidation, and gas-liquid reactions. The robust construction ensures safe handling of hazardous and reactive materials. Temperature and pressure are precisely monitored and controlled throughout the process. It supports both batch and semi-batch operations. The reactor is compatible with inert gas purging and pressurized feeding systems. Industries such as petrochemicals, pharmaceuticals, and specialty chemicals widely use such systems. ANTICO Pressura™ ensures safety, reliability, and performance in high-pressure applications. Pressure reactors are engineered for gas-liquid reactions, hydrogenation, oxidation, carbonylation, and catalytic synthesis. Designed for safe operation under elevated pressure and temperature, these systems support demanding chemical processes.
Typical research includes hydrogenation catalysts, CO₂ utilization, specialty intermediates, and pharmaceutical synthesis. Customised pressure reactors are also available.
- Volume 100 mL – 20 L
- Max Pressure Up to 200 bar
- Temperature Up to 350°C
- Materials SS316 / Hastelloy / Alloy
- Agitation Magnetic / Mechanical
- Heating Electric mantle / furnace
Key Features
-
High pressure safety design
High pressure safety design
-
Magnetic drive agitation
Magnetic drive agitation
-
Corrosion resistant alloys
Corrosion resistant alloys
-
Precise pressure monitoring
Precise pressure monitoring
-
High temperature capability
High temperature capability
-
Safety relief protection
Safety relief protection
System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Hydrogenation processes
- Pharmaceutical synthesis
- Petrochemical catalysis
- Battery material chemistry
- CO₂ conversion research
- Polymer chemistry
- Energy materials
- Nanomaterial’s research
Technical Specifications
| Parameter | Specification |
|---|---|
| Volume | 100 mL – 20 L |
| Max Pressure | Up to 200 bar |
| Temperature | Up to 350°C |
| Materials | SS316 / Hastelloy / Alloy |
| Agitation | Magnetic / Mechanical |
| Heating | Electric mantle / furnace |
| Safety | Rupture disc / PRV |
FAQ
What capacity range is available for Pressure Reactor?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
