Jacketed Reactors

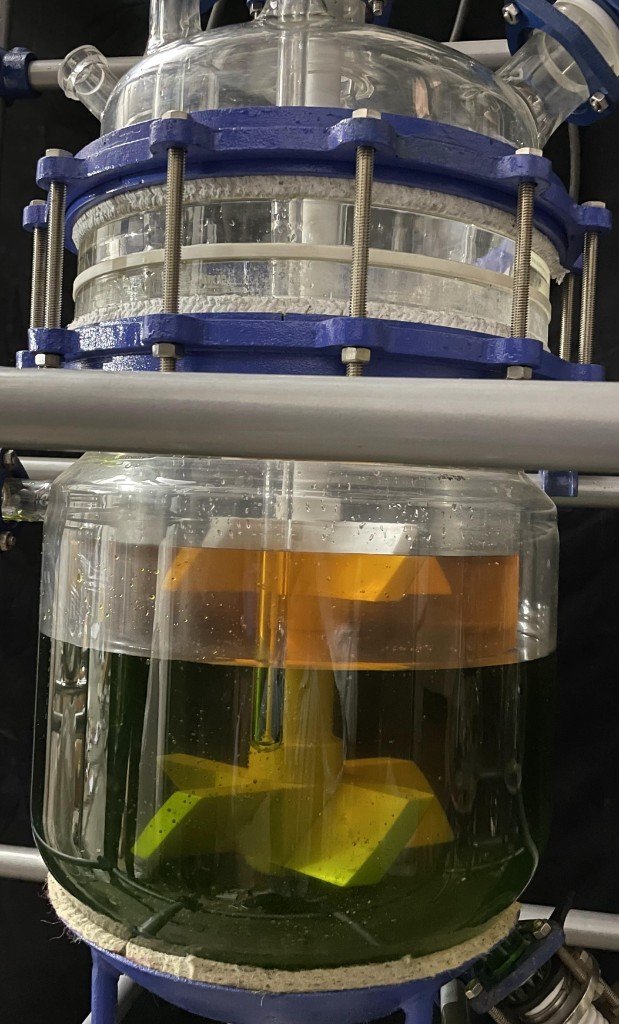

ANTICO ThermoReact™ is designed for precise thermal control of chemical reactions using a jacketed vessel system. The working principle involves circulation of heating or cooling fluids through the outer jacket to regulate reaction temperature. The system includes a reactor vessel, jacket, agitator, temperature sensors, and fluid circulation connections. It is widely used for exothermic and endothermic reactions requiring strict temperature control. Uniform heat transfer is achieved across the reaction mass. The reactor supports batch operations with high reproducibility. It is compatible with thermal oil, steam, and chilled water systems. The design ensures efficient heat removal or supply during reactions.
It is commonly used in pharmaceuticals, chemicals, and process industries. ANTICO ThermoReact™ delivers consistent and controlled reaction environments.
- Capacity 1 L – 10,000+ L
- MOC (Reactor) Borosilicate Glass 3.3 / SS316L / Glass-lined…
- Jacket Type Conventional / Half-Coil / Dimple
- Design Pressure Vacuum (-1 barg) to +6 barg
- Jacket Pressure Up to 6–10 barg
- Design Temperature -80°C to +250°C (Glass), up to 350°C (Metal)
Key Features
-
Uniform temperature distribution
Uniform temperature distribution
-
Efficient heat transfer
Efficient heat transfer
-
Robust vessel design
Robust vessel design
-
Versatile agitation options
Versatile agitation options
-
Multiple process connections
Multiple process connections
-
Suitable for batch production
Suitable for batch production
System Components
Modular assemblies engineered for reliable integration, service access, and scale-up from laboratory to pilot plant operation.
Applications
- Bulk chemicals
- Fine chemicals
- Pharmaceutical manufacturing
- Specialty polymers
- Agrochemicals
- Paints and coatings
- Resins and adhesives
- Flavors and fragrances
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 1 L – 10,000+ L |
| MOC (Reactor) | Borosilicate Glass 3.3 / SS316L / Glass-lined Steel |
| Jacket Type | Conventional / Half-Coil / Dimple |
| Design Pressure | Vacuum (-1 barg) to +6 barg |
| Jacket Pressure | Up to 6–10 barg |
| Design Temperature | -80°C to +250°C (Glass), up to 350°C (Metal) |
| Agitator Type | Anchor / Turbine / Helical Ribbon |
| Speed Range | 20 – 500 RPM (VFD controlled) |
| Seal Type | Mechanical Seal / Gland Packing |
| Heat Transfer Media | Steam / Hot Oil / Chilled Water / Brine |
| Nozzles | Charge, Vent, Temp, Pressure, Sampling, Drain |
| Instrumentation | RTD/PT100, Pressure Gauge, PID Controller |
| Automation | PLC / SCADA (Optional) |
| Safety Features | PRV, Rupture Disc, Flameproof Motor |
| Compliance | ASME / DIN / ISO |
Related Products
FAQ
What capacity range is available for Jacketed Reactor?
We offer project-specific sizing from laboratory benchtop scale through pilot and production volumes. Contact our engineers with your batch size and process requirements for a tailored recommendation.
Can this unit be integrated with existing plant automation?
Yes. All systems support standard instrumentation signals and can interface with DCS, PLC, or standalone controllers. Custom I/O and recipe control packages are available.
What material options are available?
Borosilicate glass, glass-lined steel, stainless steel, and specialty alloys including Hastelloy can be specified based on your process chemistry, temperature, and pressure requirements.
Do you provide installation and commissioning?
Global Lindus provides on-site installation supervision, commissioning, operator training, and optional IQ/OQ documentation for regulated industries.
What is the typical delivery lead time?
Standard configurations ship in 4–8 weeks. Custom skid assemblies and large production units may require 12–16 weeks depending on scope and material availability.
